DevLog 05
Outcomes
1. đź“šRead Chapter 5 (58-67) Physical Computing with Pico. Post documentation of your Traffic light controller
Done in class, showed Dr. Mundy.
2. đź“šRead Chapter 6 (68-79) Physical Computing with Pico. Post documentation of your Reaction Game
Done in class.
3. Post documentation showing data from an analog sensor.
See video of musical instrument with data streamed to computer. https://youtube.com/shorts/XYslZ12iYtQ
4. 📚Read Brian Merchant Everything That’s Inside Your iPhone Motherboard (2017). ✏️ Write a reflection below:
Reading this piece helped me see beyond the veneer of the iPhone’s sleek image. It helped me recognise the vast supply chains and patterns of extraction that make its existence possible. The contrast between cutting-edge technology and the dangerous, sometimes exploitative conditions faced by miners is unsettling and hard to ignore. It challenges us to see beyond the convenience offered to us by modern products and see the exploitation it took to deliver it. I was especially struck by how little of the phone’s value comes from its raw materials, despite the enormous effort required to obtain them.
5. đź“šRead Chapter 7 (80-91) Physical Computing with Pico. Post documentation of your Burglar Alarm.
Done in class.
6. đź“šRead Chapter 8 (92-103 ) Physical Computing with Pico. Post documentation of your Temperature gauge.
Done in class.
7. Post documentation showing audio from your Pico
https://youtu.be/7iM7FUXrSN8
8. Post documentation showing audio from your Pico
https://youtube.com/shorts/XYslZ12iYtQ

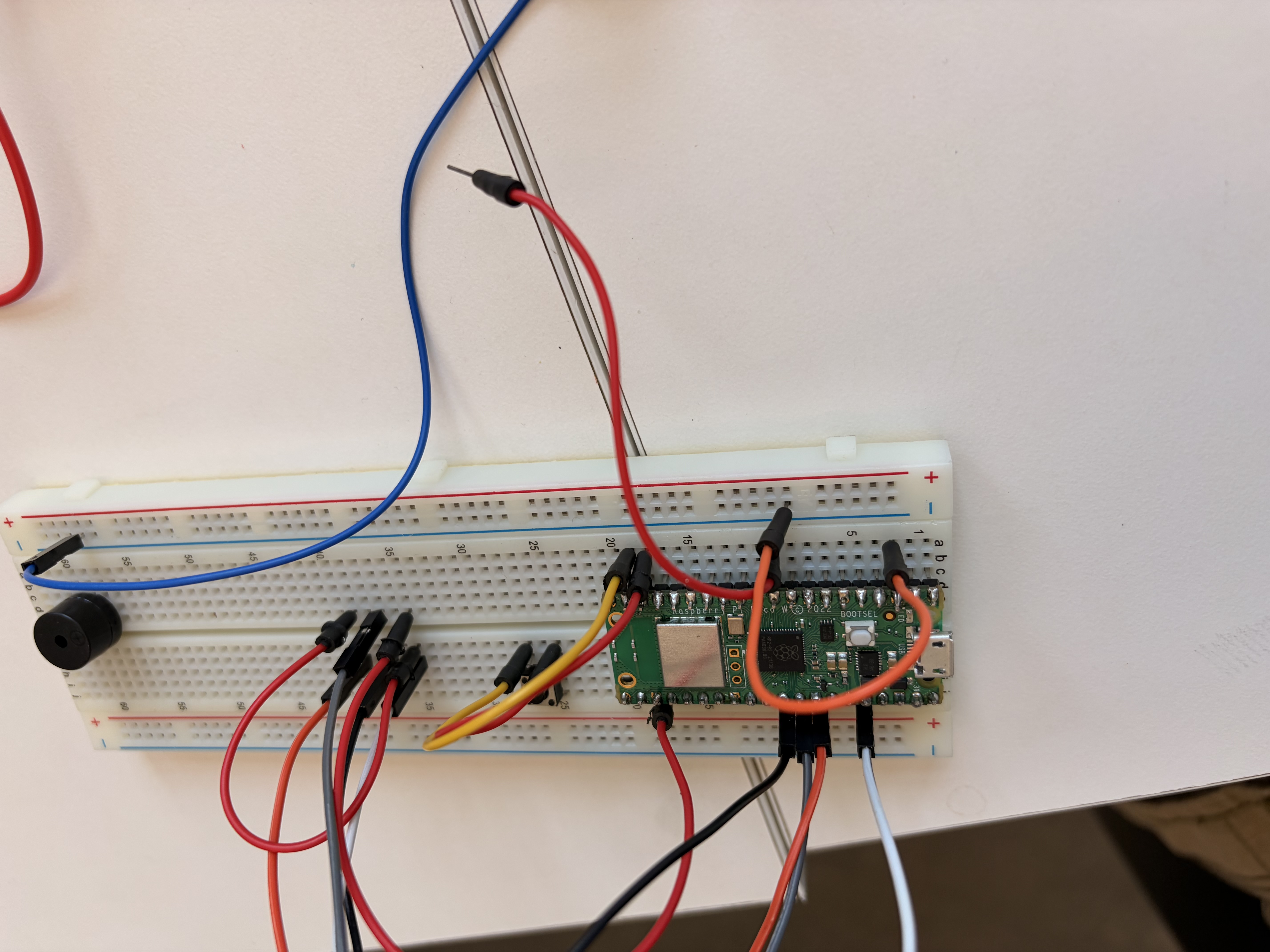

9. Post documentation of your progress on the Musical Instrument

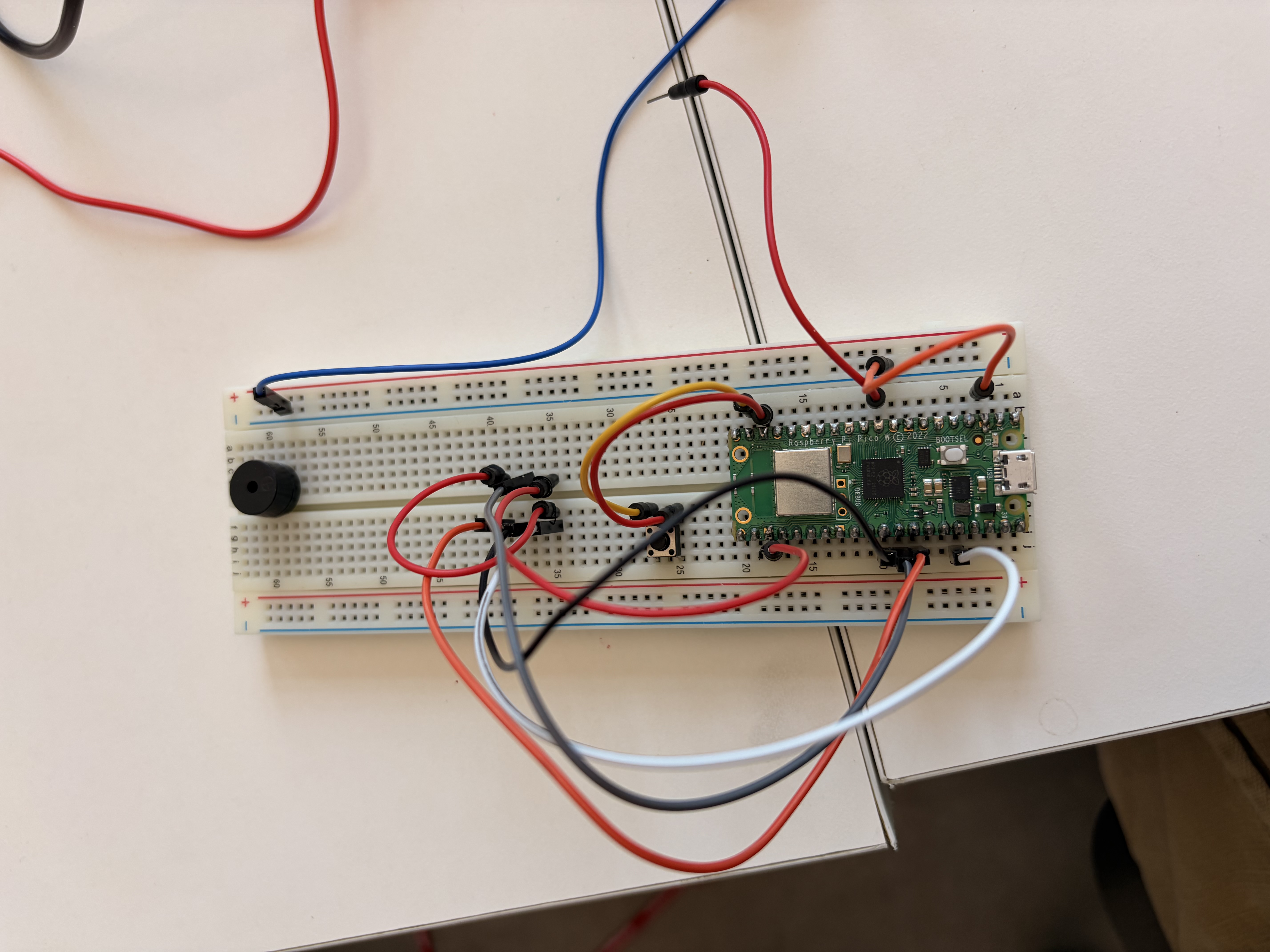

10. Post documentation of your progress on the Musical Instrument
